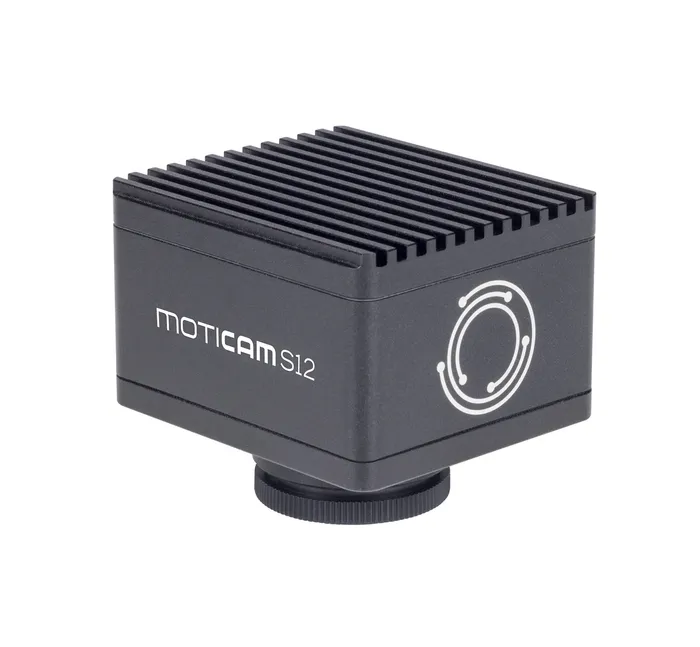

Moticam S12 - 12MP USB Digital Camera
Description
If it is about maximum resolution for printing purposes, Moticam S12 is your choice. A 25 fps frame rate manages the largest data volume of Motic's S-LINE. If resolution in display or for printing purposes is in your focus, Moticam S12 is an offer you should not refuse.
Sensor Type: sCMOS
Sensor Size: 1/1.7"
Imaging Area: 9.33mm (Diagonal)
Capture Resolution: 12MP
Live display mode through USB (pixels): 4000x3000, 2048x1080
Pixel Size: 1.85x1.85ìm
Scan Mode: Progressive
Shutter Mode: Rolling Shutter
Data Transfer: USB 3.1
Max. frames per second (fps*): 4000x3000 @ 25fps, 2048x1080 @ 50fps(*Frames per second under optimal lighting conditions and in compliance with computer technical requirements)
Exposure time: 22 ìsec to 2 sec
Operating Temperature: -10 to 60 degress Celsius, non condensing
Sensitivity: 280mV(G) @ 1/30 sec
Support device: TWAIN, SDK and DirectShow driver
Supported OS: Microsoft windows 7/8/10, MAX OSX, Linux or higher
Minimum computer requirements: 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount: C-Mount
Software: Motic Images Plus 3.0 for Windows, OSX and Linux
Functions: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system
Power Supply: 5V (from USB port)
Package includes: CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux
