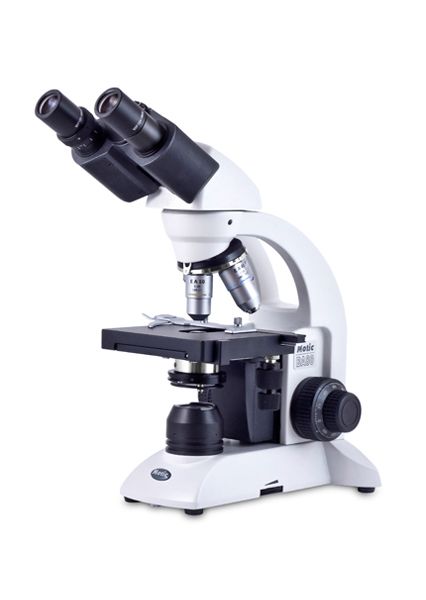

BA-81B-MS BINOCULAR BIOLOGICAL MICROSCOPE
Description
Motic BA80 series biological microscope
Most popular microscope for science education
Motic BA80 series biological microscope is a range of microscopes designed for middle to senior students. The microscopes are designed with high-quality glass optics, durable brass gears, and mechanical parts to last for many years. The LED illumination provides a white, bright and heat-less illumination which is safe for the students. The reversed nosepiece allows the change of objectives and insert of the slides easily by students.
Unique design and features
Motic BA80 series biological microscopes are designed ergonomically with low positioned control knobs. Careful thought was given to the design of the microscope arm for easy carrying. High-quality EA Achromatic objectives ensure crisp and clear images. Monocular and Siedentopf binocular head models are available.
For advanced senior students or applications, models with EA Achromatic 100x objective, coaxial focusing system and built-in coaxial mechanical stage are available.
5 Year Warranty
Head Binocular 360° rotatable
Inclination 30° Inclined, 360° rotating
Eyepiece WF 10X / 18 mm
Objective 4x/0.10, 10x/0.25, 40x/0.65/S, 100x/1.25/S-Oil (Spring) EA Achromatic DIN
Nosepiece Reversed quadruple revolving nosepiece with click stops
Condenser Spiral mount N.A Abbe condenser, iris diaphragm
Diaphragm Disc
Focusing Separate Coarse & Fine system
Illumination Variable LED
Bulb replacement LED bulb 3.5V 70mW
Stage Built-in low position coaxialmechanical stage
Stage Size 120 x 120mm
Z-Axis Movement 14mm with built in frosted glass
