MOTIC BA-81A MONO BIOLOGICAL W/MECH STAGE
Description

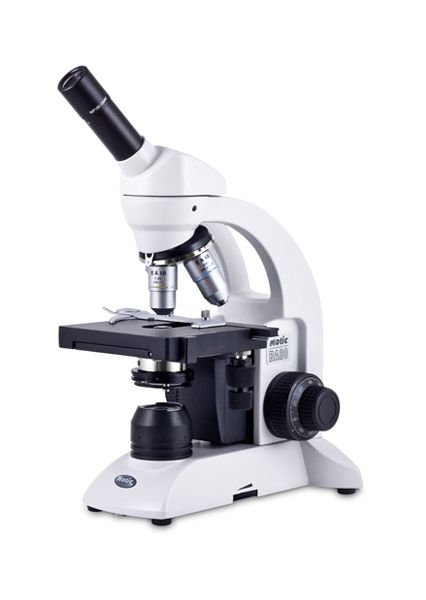

Motic BA80 series biological microscope
Most popular microscope for science education
Motic BA80 series biological microscope is a range of microscopes designed for middle to senior students. The microscopes are designed with high-quality glass optics, durable brass gears, and mechanical parts to last for many years. The LED illumination provides a white, bright and heat-less illumination which is safe for the students. The reversed nosepiece allows the change of objectives and insert of the slides easily by students.
Unique design and features:
Motic BA80 series biological microscopes are designed ergonomically with low positioned control knobs. Careful thought was given to the design of the microscope arm for easy carrying. High-quality EA Achromatic objectives ensure crisp and clear images. Monocular and Siedentopf binocular head models are available.
For advanced senior students or applications, models with EA Achromatic 100x objective, coaxial focusing system and built-in coaxial mechanical stage are available.
5 Year Warranty
· Head - Monocular 360° rotatable
· Inclination - 45° Inclined, 360° rotating
· Eyepiece - WF 10X / 18 mm
· Objective - 4x/0.10, 10x/0.25, 40x/0.65/S, 100x/1.25/S-Oil (Spring) EA Achromatic DIN
· Nosepiece - Reversed quadruple revolving nosepiece with click stops
· Condenser - Spiral mount N.A Abbe condenser, iris diaphragm
· Diaphragm - Disc
· Focusing - Coaxial Coarse & Fine system
· Illumination - Variable LED
· Bulb replacement - LED bulb 3.5V 70mW
· Stage - Built-in low position coaxialmechanical stage
· Stage Size - 120 x 120mm
· Z-Axis Movement - 14mm with built in frosted glass
