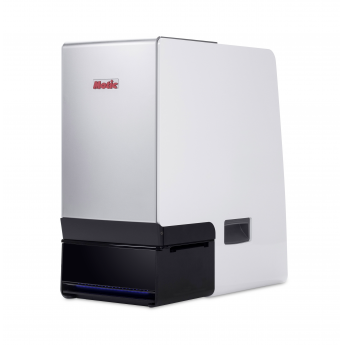

MoticEasyscan One

Stock Code:
48-MOTICEASYSCANONE
Out of Stock
Login For Price

Description


Compact, powerful, and deployable anywhere, this scanner is the perfect assistant for any digital slide application.

This scanning system sets a new industry benchmark with its affordable price and high performance, seamlessly integrating into any workflow and bringing lab-quality scanning to any work environment.

The FS-Live software suite, optimized for frozen section, cytology, ROSE, and FNA adequacy evaluation, places control into the hands of the remote pathologist to pilot the system and provide a diagnosis without costly travel time.

Specifications:

· Optical system - Colour Corrected Infinity Optical System (CCIS®)

· Sensor Type - CMOS

· Sensor Size - 2/3″

· Capture Resolution Info - 5MP

· Resolution - 20X: 0.52ìm/pixel , 40X: 0.26ìm/pixel , 80X: 0.13ìm/pixel

· Scanning Time - 20X with 10X objective: 60s , 40X with 20X objective: 160s , 80X with 40X objective: 640s

· Scan mode - Normal (Real-time autofocus) , High precision (High precision autofocus) , EDF(Extended depth of field) , Z-stack (Three dimensional stacking)

· Data transfer - USB 3.0

· Nosepiece - Triple

· Objective classification - CCIS® Plan Apochromatic, DIN

· Objectives - Plan S-Apochromatic 10X/0.3, Plan Apochromatic 20X/0.75, Plan S-Apochromatic 40X/0.75

· Slide capacity - 1

· Slide Tray - 1-slide tray system

· Slide Dimension - 76 x 26mm

· Slide Tolerance - Length +0/-1, Width +0/-1

· Focus mechanism - Real-time autofocus

· Transmitted illumination - LED 10W

· Software - DSAssistant, EasyScanner

· Barcode Support - 1D: Interleaved 2 of 5, Code 39, Code 128 – 2D: Data Matrix, QR Code

· Computer - Not included, minimum specifications: Intel Core i7-7700/16GB memory,128GB SSD & 1TB SATA disk, Windows 10 Pro 64-bit

· Accessories - dust cover, charger, batteries

· Dimensions - 205 x 398 x 420mm

· Weight - 12.6kg
