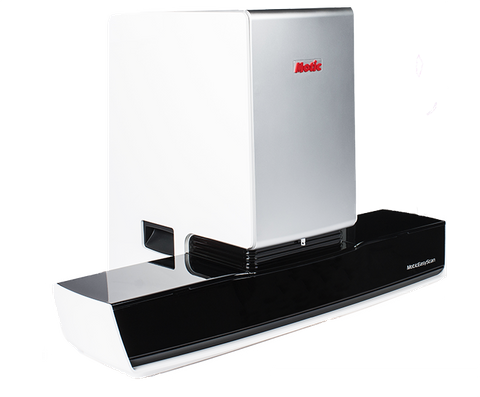

Motic EasyScan Pro6
Description
The MoticEasyScan Pro is the perfect gateway product for any lab, startup, or medical organization joining the digital revolution in pathology. Simple and easy to use, this scanner system scans up to 6 slides in just one click. It scans and uploads high-quality digital slides to your slide management server, all at a single click. With its small footprint, high resolution power, and hassle-free setup, this multipurpose scanner is the ideal tool for any application that requires glass slide digitization.
· Optical system - Colour Corrected Infinity Optical System (CCIS®)
· Sensor Type - CMOS
· Sensor Size - 2/3″
· Capture Resolution - 5MP
· Resolution - 20X: 0.52ìm/pixel , 40X: 0.26ìm/pixel , 80X: 0.13ìm/pixel
· Scanning Time s - 20X with 10X objective: 60s , 40X with 20X objective: 160s , 80X with 40X objective: 640s
· Scan mode s - Normal (Real-time autofocus) , High precision (High precision autofocus) , EDF (Extended depth of field) , Z-stack (Three dimensional stacking)
· Data transfer - USB 3.0
· Nosepiece - Triple
· Objective classification - CCIS® Plan Apochromatic, DIN
· Objectives - Plan S-Apochromatic 10X/0.3, Plan Apochromatic 20X/0.75, Plan S-Apochromatic 40X/0.75
· Slide capacity - 6
· Slide Tray - 6-slide tray system
· Slide Dimension - 76 x 26mm
· Slide Tolerance - Length +0/-1, Width +0/-1
· Focus mechanism - Real-time autofocus
· Transmitted illumination - LED 10W
· Software - DSAssistant, EasyScanner
· Barcode Support - 1D: Interleaved 2 of 5, Code 39, Code 128 – 2D: Data Matrix, QR Code
· Computer - All-in-One PC, 4K resolution, Intel Core i7-7700, 16GB memory, 256GB SSD& 1TB SATA disk, wireless keyboard and mouse, Windows 10 Pro 64-bit (configuration may change due to available hardware without notice and without obligaiton)
· Monitor - All-in-One, touch screen 27″ QHD resolution
· Length x width x height - 645 x 398 x 420mm
· Weight - 16kg
